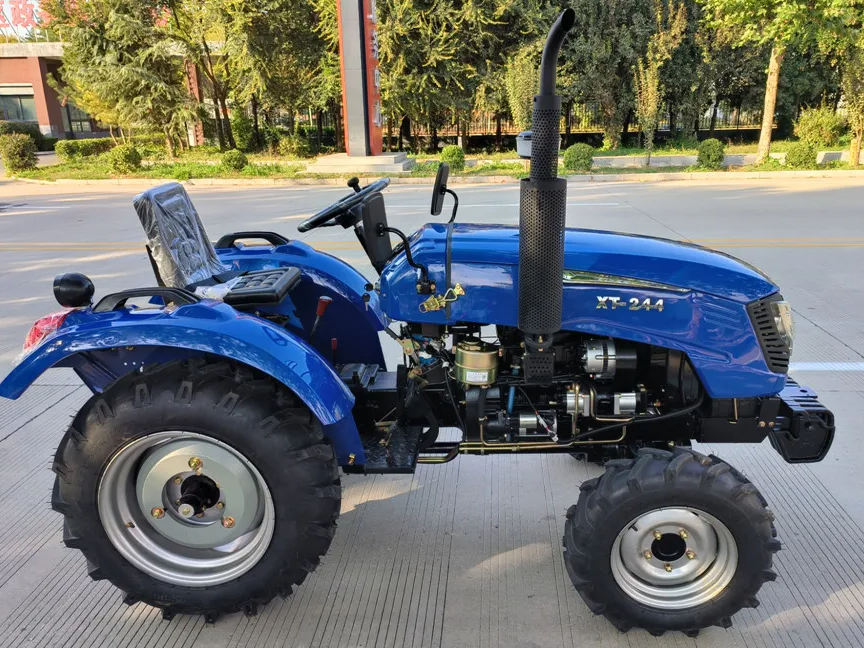

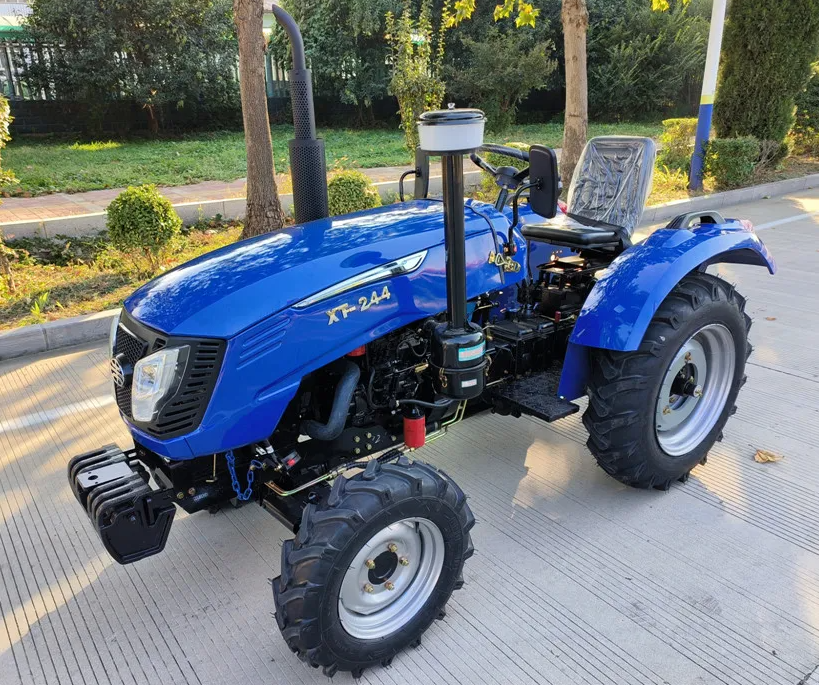

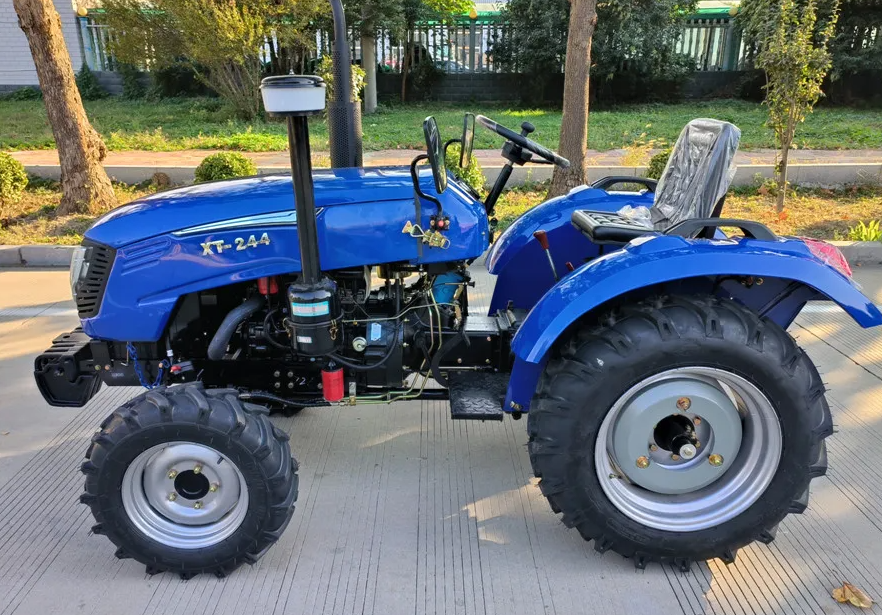

XINGTAI Mini Tractor Small Mini Tractor with Four Wheels and Cheap Tractor 12HP-25HP

Product Categories
Anshan Anza Electronic Power Co.,Ltd.
Contact Now

XINGTAI Mini Tractor Small Mini Tractor with Four Wheels and Cheap Tractor 12HP-25HP

Brand Name : OEM

Model Number : 12HP-25HP

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1 pcs

Payment Terms : T/T

Delivery Time : 15-20 days

Packaging Details : Standard Exporting Packaging

Contact Now

Model XTLT 220 XTLT240/250 XTLT240/250 XTLT300
Drive Type 4×2 WD

Rated Traction Force(kn)

 4.6 5.2 5.2 6.5

Overall Dimension (L×W×H/mm)

 2580×1200×1885 2580×1200×1885 2580×1200×1885 2880×1250×1900

Structure Weight (kg)

 850 850 1070 1070

Min. Operating Weight (kg)

 970 970 1190 1190
Wheelbase (mm) 1450 1450 1560 1560
Tread (mm) 990 990 1020 1020

Ground Clearance (mm)

 340 340 370 370

Min. Turning Radius (m)

 3.9 3.9 4.2 4.2

Speed (km/h)

Forward

 2.84/5.42/8.28/10.78/17.53/29.35 2.84/5.42/8.28/10.78/17.53/29.35 1.92/2.94/4.61/6.38/8.88/13.59/21.33/29.41 2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76

Reverse

 2.84/10.78 2.84/10.78 2.54/12.27 2.54/12.27

Hydraulic Suspension

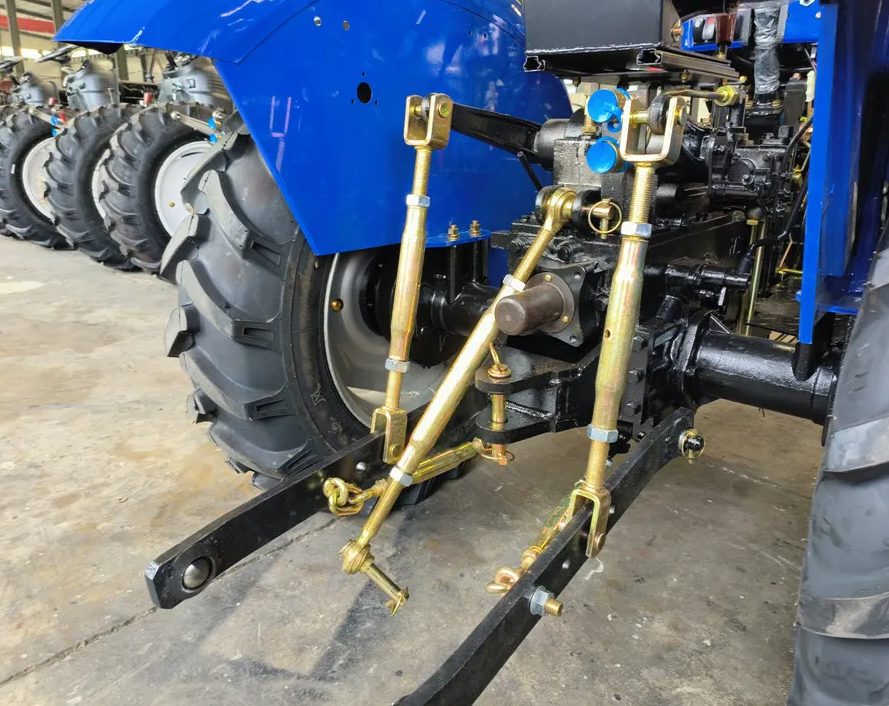

I Category, Rear Mounted, Three Point Suspension

PTO Shaft Type

Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm

Tire Model

 4.00-14/7.50-20 4.00-14/7.50-20 6.00-16/9.5-24 6.00-16/9.5-24
Engine Specification

Engine Model

 KM380BT KM385BT KM385BT KM390BT

Engine Type

3 Cylinder, Vertical, Water cooled, 4 stroke Diesel

12-hour Rated Power (kW)

 16.2 17.6/18.4 17.6/18.4 22.1

Rated Speed (rpm)

 2300 2350 2350 2400

Bore×Stroke (mm)

 80×90 85×90 85×90 90×100

Fuel Consumption (g/kW*h)

 ≤238 ≤238 ≤238 ≤238

Displacement (L)

 1.49 1.65 1.65 1.909

Model XTLT224 XTLT244/254 XTLT244/254 XTLT304
驱动类型Drive Type 4×4 轮式4×4 WD

额定牵引力(kn)

Rated Traction Force(kn)

 5.4 6.2 6.2 7.5

外形尺寸(长×宽×高/mm)

Overall Dimension (L×W×H/mm)

 2580×1200×1885 2950×1250×1980 2950×1250×1980 2950×1250×1980

结构质量(kg)

Structure Weight (kg)

 1050 1200 1200 1200

最小使用质量(kg)

Min. Operating Weight (kg)

 1170 1320 1320 1320
轴距(mm)Wheelbase (mm) 1560 1690 1700 1700
轮距(mm)Tread (mm) 990 990 1020 990/1020

地隙(mm)

Ground Clearance (mm)

 245 235 235 235

最小转向半径(m)

Min. Turning Radius (m)

 4.2 4.5 4.5 4.5

理论速度(km/h)

Speed (km/h)

前进

Forward

 2.84/5.42/8.28/10.78/17.53/29.35 2.84/5.42/8.28/10.78/17.53/29.35 2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76 2.21/3.37/4.61/6.38/8.88/13.59/21.33/31.76

后退

Reverse

 2.84/10.78 2.84/10.78 2.84/10.78 2.54/12.27

悬挂装置

Hydraulic Suspension

I Category, Rear Mounted, Three Point Suspension

动力输出轴

PTO Shaft Type

Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm

轮胎型号

Tire Model

 6.00-14/7.50-20 6.00-14/7.50-20 6.00-16/9.5-24 6.00-16/9.5-24
发动机参数/Engine Specification

发动机型号

Engine Model

 KM380BT KM385BT KM385BT KM390BT

发动机类型

Engine Type

3 Cylinder, Vertical, Water cooled, 4 stroke Diesel

12小时功率(kW)

12-hour Rated Power (kW)

 16.2 17.6/18.4 17.6/18.4 22.1

转速(rpm)

Rated Speed (rpm)

 2300 2350 2350 2400

缸径×冲程(mm)

Bore×Stroke (mm)

 80×90 85×90 85×90 90×100

燃油消耗率(g/kW*h)

Fuel Consumption (g/kW*h)

 ≤238 ≤238 ≤238 ≤238

排量(L)

Displacement (L)

 1.49 1.65 1.65 1.909

Model XTLT350 XTLT400 XTLT450
Drive Type 4×2 WD

Rated Traction Force(KN)

 7 8.2 9.3

Overall Dimension (L×W×H/mm)

 2780×1425×1900 3165×1425×2000 3285×1425×2000

Structure Weight (kg)

 1200 1200 1330

Min. Operating Weight (kg)

 1320 1320 1450

Wheelbase (mm)

 1610 1760 1835

Tread (mm)

 1100/1200 1100/1200 1100/1200

Ground Clearance (mm)

 370 370 370

Min. Turning Radius (m)

 4.5 4.6 4.6

Speed (km/h)

Forward

 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84

Reverse

 3.18/14.71 3.18/14.71 3.18/14.71

Hydraulic Suspension

I Category, Rear Mounted, Three Point Suspension

PTO Shaft Type

非独立式,顺时针,6花键,花键名义外径35mm,540rpm

Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm

Tire Model

 6.00-16/9.50-24 6.00-16/9.50-24 6.00-16/9.50-24
Engine Specification

Engine Model

 4L22BT KM490BT YN25GB

Engine Type

4 Cylinder, Vertical, Water cooled, 4 stroke Diesel

12-hour Rated Power (kW)

 25.7 29.5 33

Rated Speed (rpm)

 2300 2300 2300

Bore×Stroke (mm)

 85×95 90×100 90×100

Fuel Consumption (g/kW*h)

 ≤250 ≤250 ≤250

Displacement (L)

 2.156 2.4 2.54

Model XTLT354 XTLT404 XTLT454
Drive Type 4×4 WD

Rated Traction Force(KN)

 8.2 9.4 10.5

Overall Dimension (L×W×H/mm)

 2780×1425×1900 3165×1425×2000 3285×1425×2000

Structure Weight (kg)

 1200 1200 1330

Min. Operating Weight (kg)

 1320 1320 1450
Wheelbase (mm) 1610 1760 1835
Tread (mm) 1100/1200 1100/1200 1100/1200

Ground Clearance (mm)

 280 280 280

Min. Turning Radius (m)

 4.8 4.8 4.8

Speed (km/h)

Forward

 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84 2.42/3.69/5.78/7.97/11.79/17.03/26.72/36.84

Reverse

 3.18/14.71 3.18/14.71 3.18/14.71

Hydraulic Suspension

I Category, Rear Mounted, Three Point Suspension

PTO Shaft Type

Dependent, Clockwise, 6 Spline, Φ35mm, 540rpm

Tire Model

 6.00-16/9.50-24 6.00-16/9.50-24 6.00-16/9.50-24
Engine Specification

Engine Model

 4L22BT KM490BT YN25GB

Engine Type

4 Cylinder, Vertical, Water cooled, 4 stroke Diesel

12-hour Rated Power (kW)

 25.7 29.5 33.3

Rated Speed (rpm)

 2300 2300 2300

Bore×Stroke (mm)

 85×95 90×100 90×100

Fuel Consumption (g/kW*h)

 ≤250 ≤250 ≤250

Displacement (L)

 2.156 2.4 2.54
